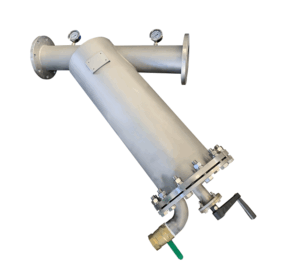

Manual brush filter is composed by filter body, stainless steel screen, cleaning brush holder with handle, drain valve and pressure gauge. Cleaning brush holder through the filter cover, and the cleaning brush is installed inside the stainless steel filter. When the water flows through manual brush filter, the impurity is intercepted by the filter., when need to drain, just shake the handle clockwise to open the drain valve number, can complete drainage, don’t need to remove the filter cleaning internal mesh, cleaning sewage process flow do not interrupt.

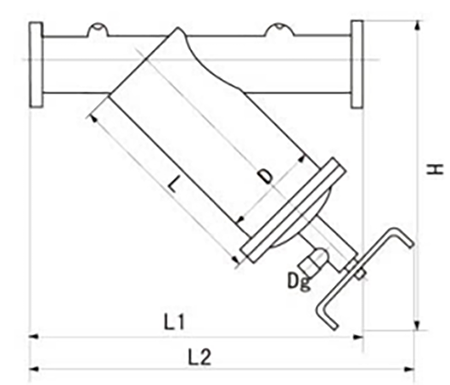

| Model | Water in/out(mm) | L1 | L2 | L | D | H | Drain out(mm) | Flow(m3/h) |
| SASF-50 | 50 | 500 | 710 | 330 | 159 | 500 | 25 | 19 |
| SASF-80 | 80 | 550 | 710 | 330 | 159 | 550 | 25 | 50 |
| SASF-100 | 100 | 670 | 810 | 430 | 159 | 670 | 32 | 80 |
| SASF-150 | 150 | 800 | 950 | 480 | 275 | 800 | 32 | 150 |
| SASF-200 | 200 | 900 | 1050 | 560 | 325 | 900 | 40 | 320 |
