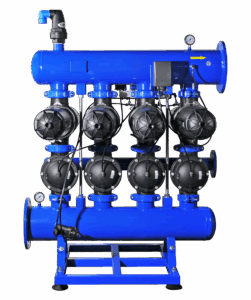

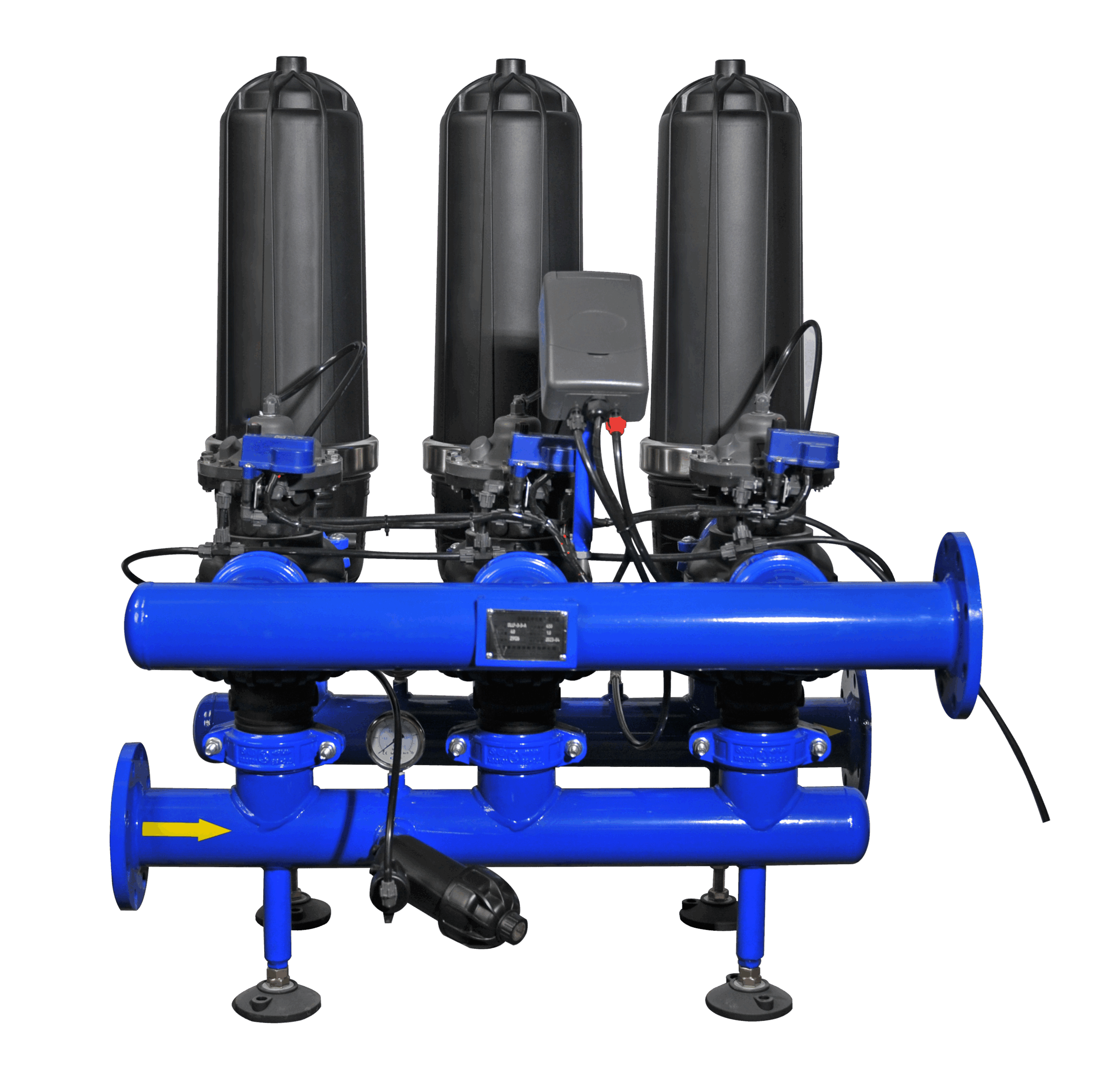

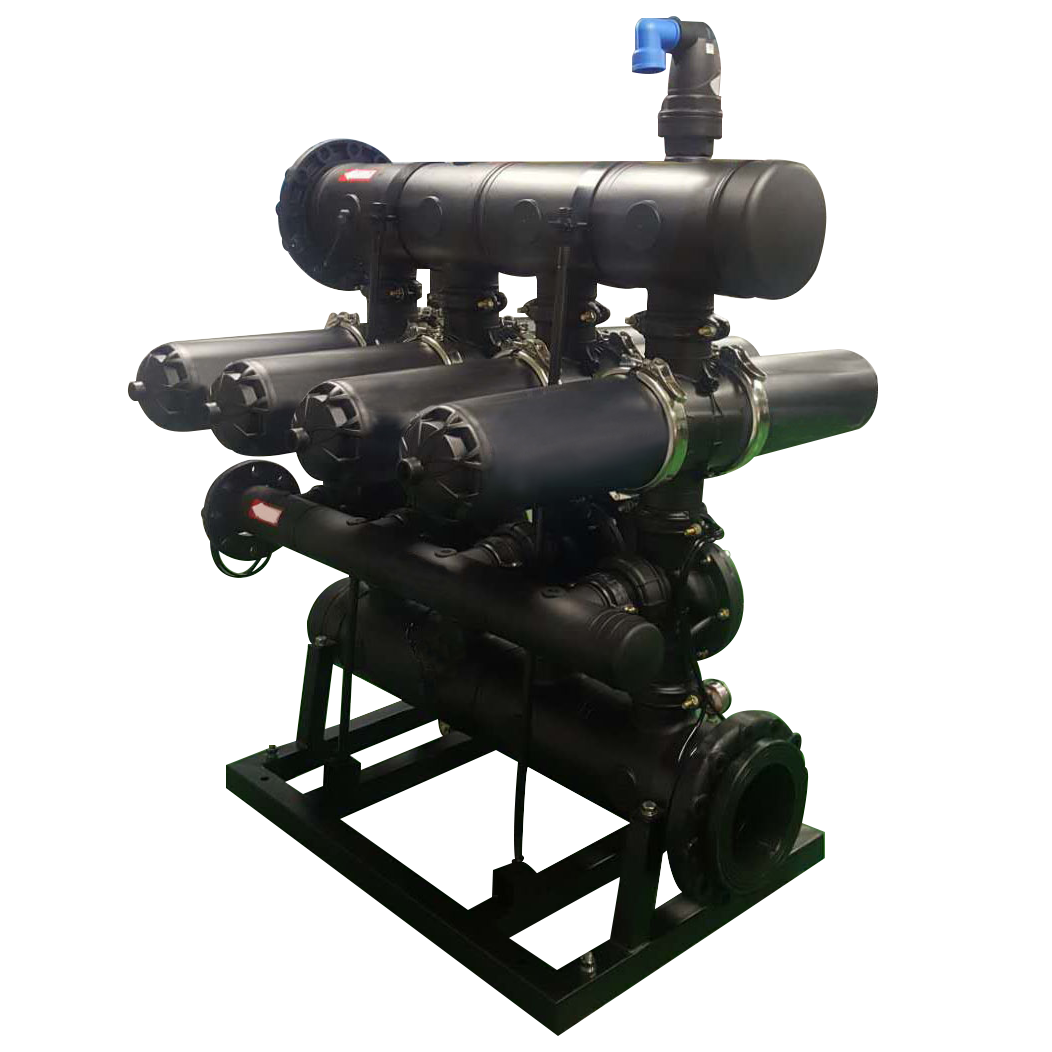

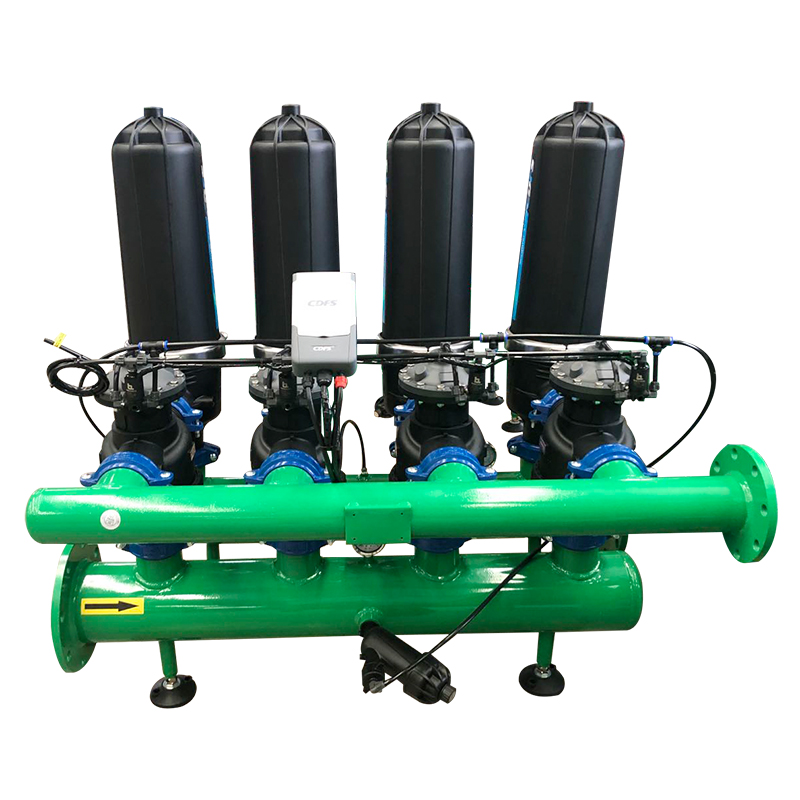

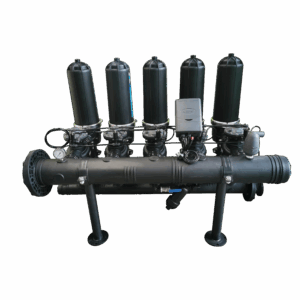

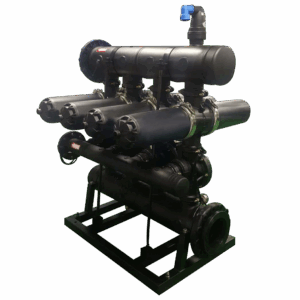

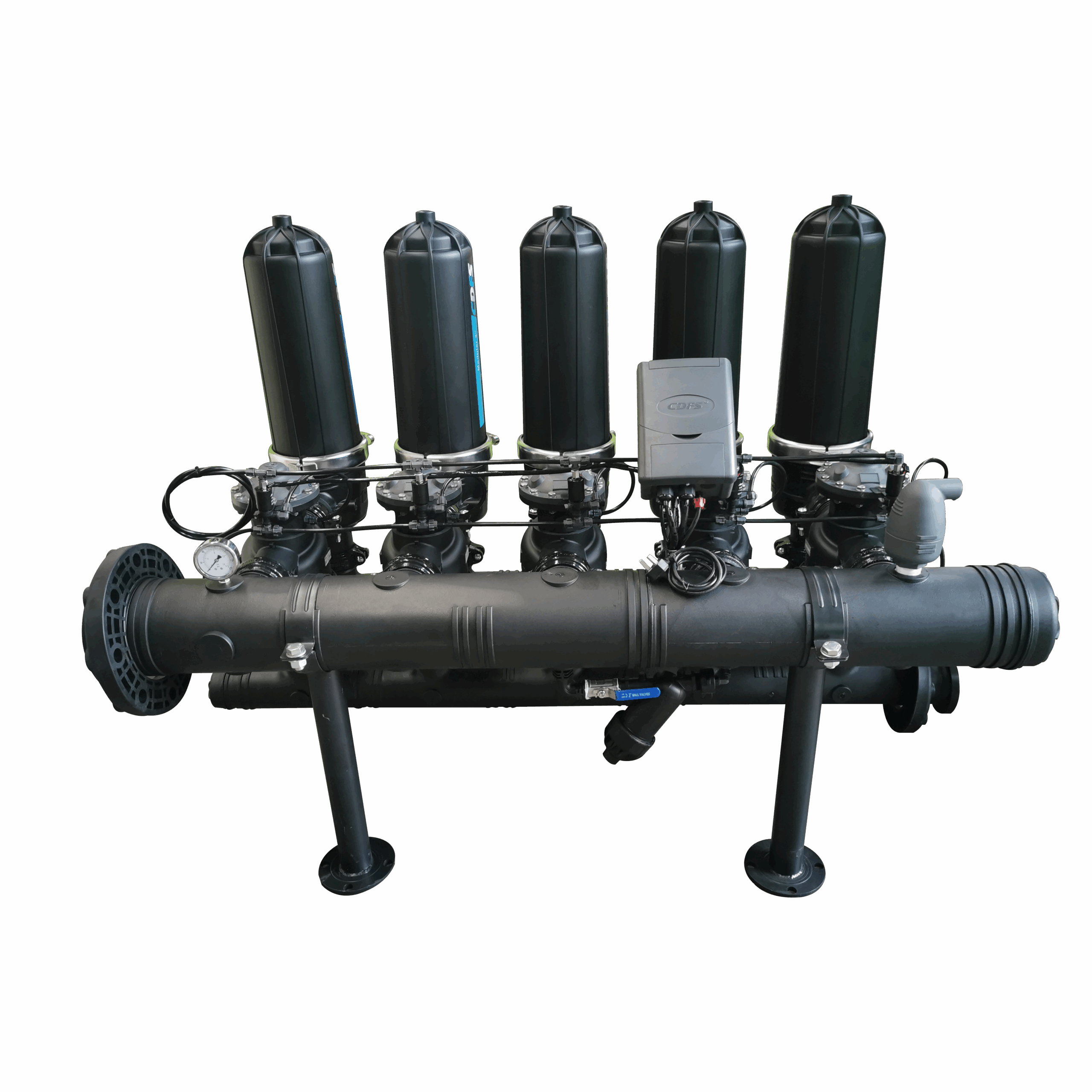

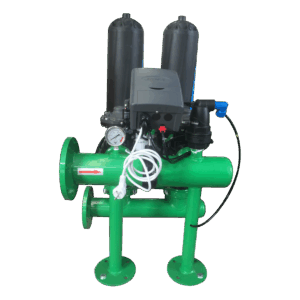

Disc Filter System

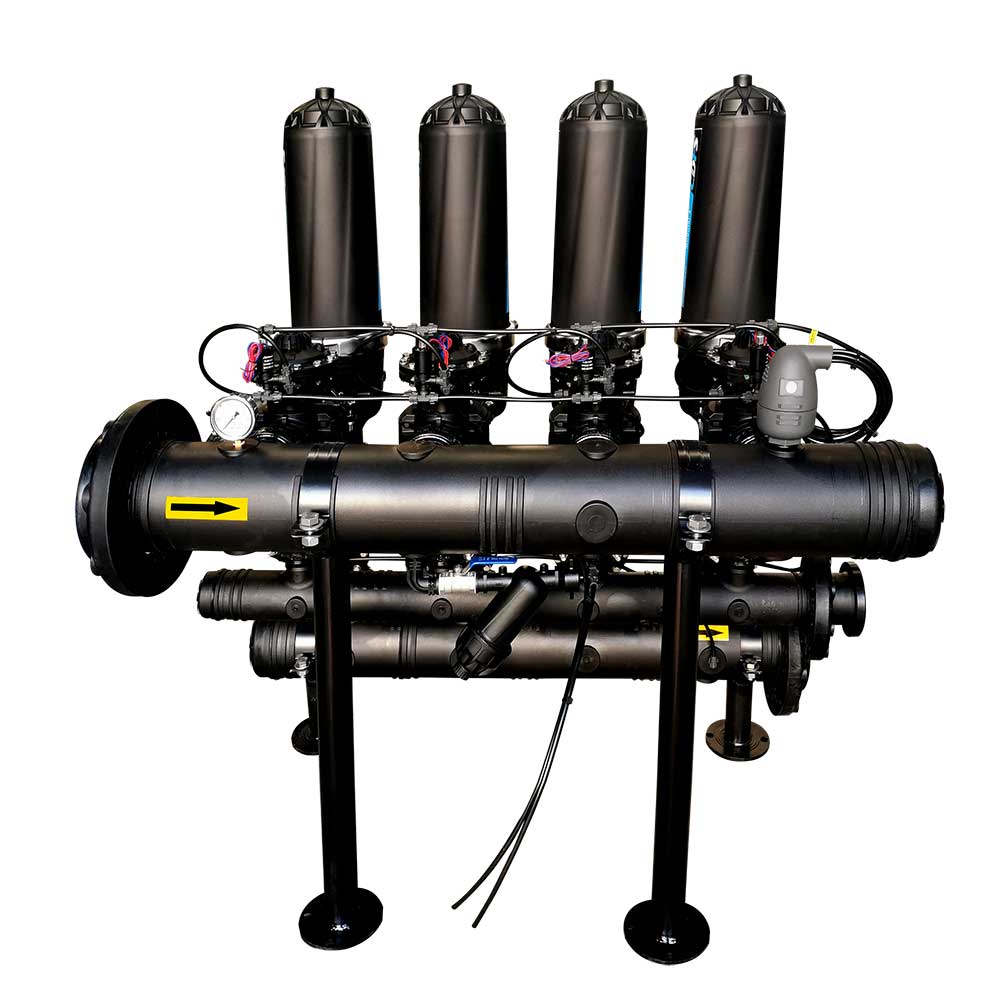

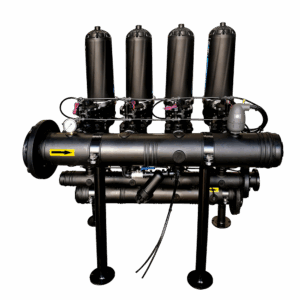

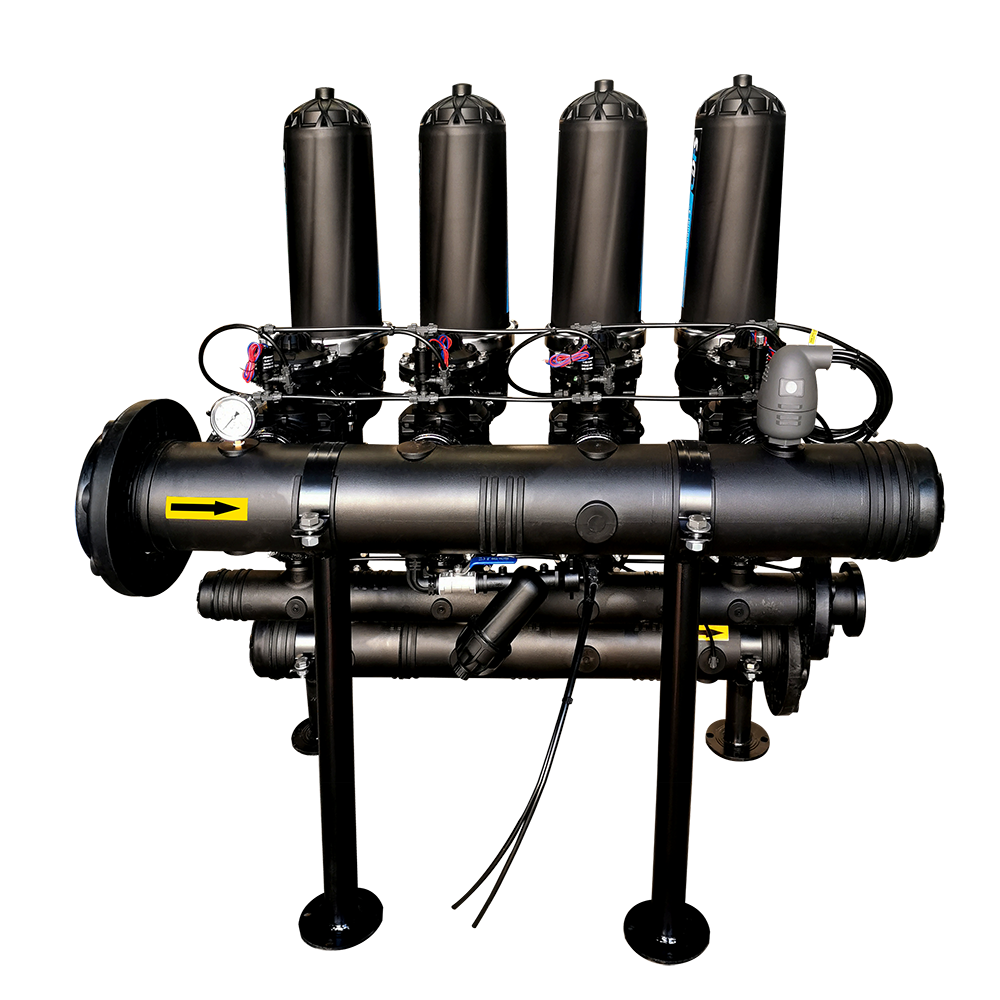

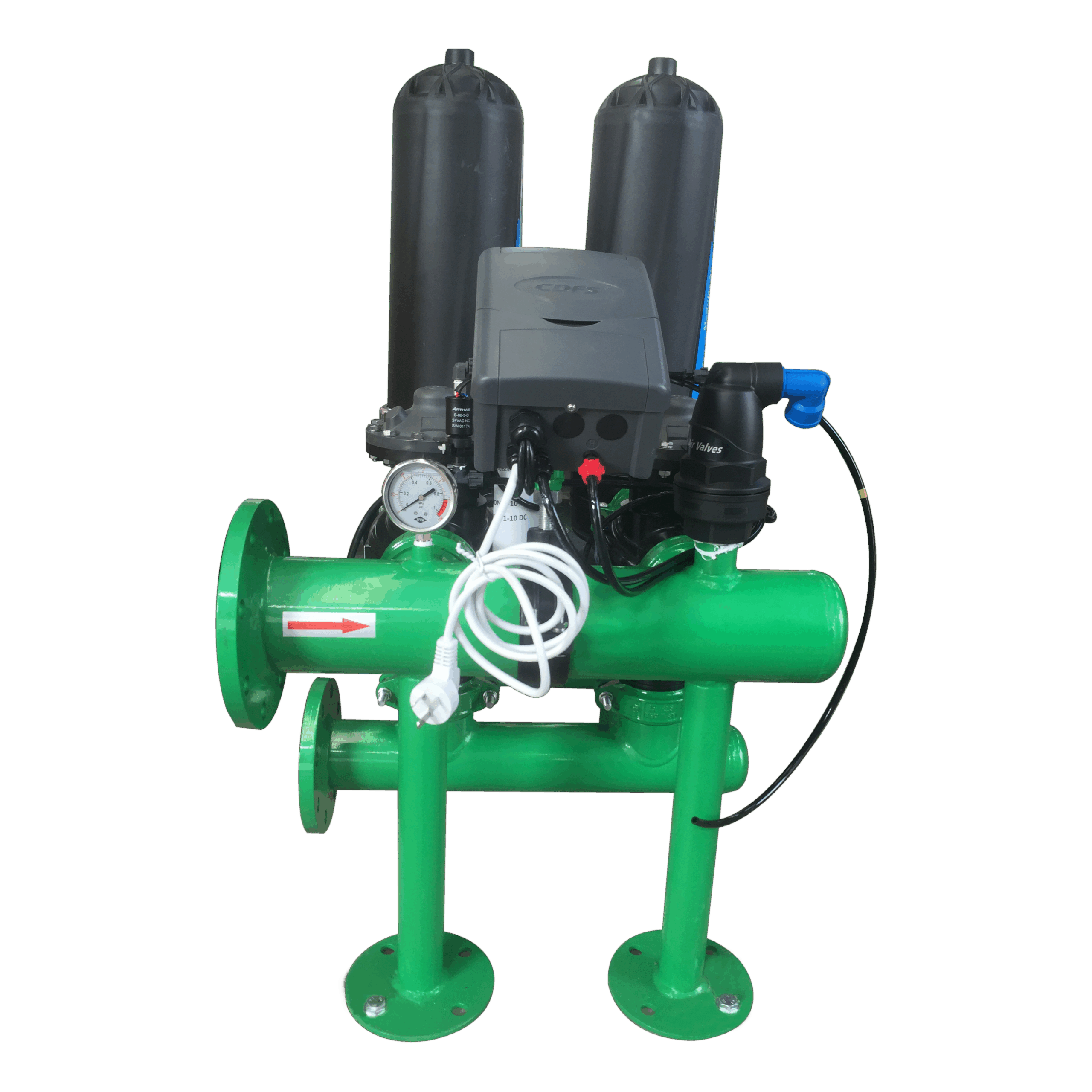

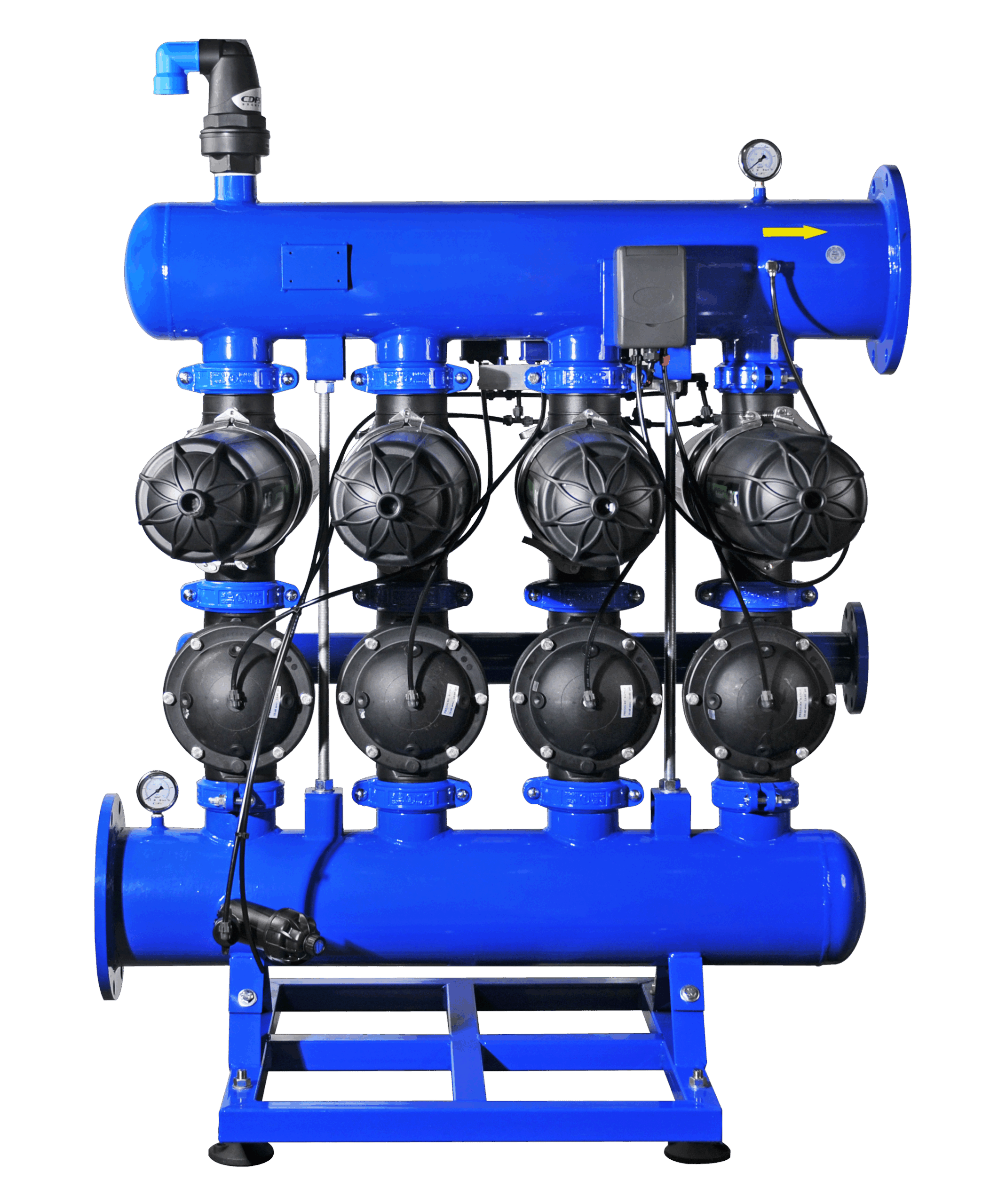

Automatic disc filter system with disc filtering element(as below) with 2″/ 3″ /4″ backwash valves,air valve,manifolds,controller. Easy to install.

Principle

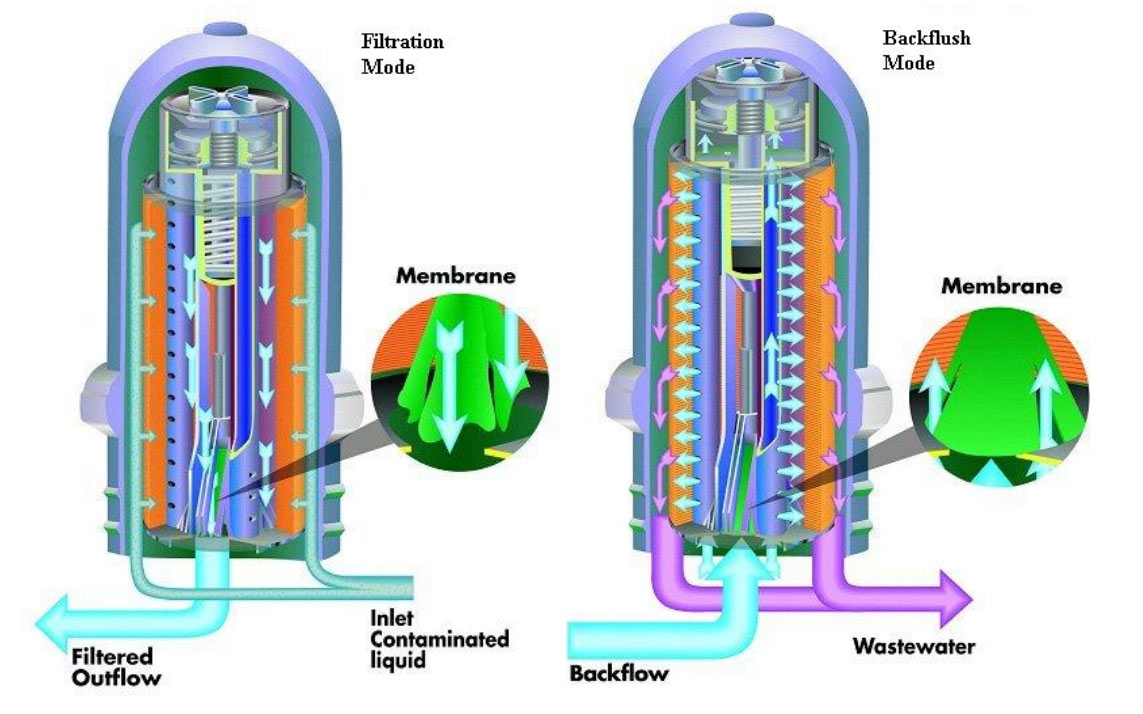

The system has two operation stages: filtering and back washing

.
Filter stage: The Helix generates a centrifugal helical effect which moves the larger particles away from the discs. This allows the discs to concentrate on removing the finer particles without build up of the larger particles on the filtration surface.

Backwash stage: when a certain pressure difference or time arrived, the filtered water is introduced in reverse through the filtering element which decompresses the stack of discs, starting the backwash. The solids are expelled from the discs and are then evacuated through the drainage manifold.

Model	Inlet/outlet	Max flow rate
DF2-2	3 inch/80mm	30
DF2-3	4 inch/100mm	45
DF3-2	4 inch/100mm	60
DF3-3	4 inch/100mm	90
DF3-4	6 inch/150mm	120
DF3-5	8 inch/200mm	150
DF4-3	8 inch/200mm	180
DF4-4	8 inch/200mm	240
DF4-5	8 inch/200mm	300
DF4-6	10 inch/250mm	360
DF4-7	10 inch/250mm	420
DF4-8	12 inch/300mm	480
DF4-9	12 inch/300mm	540
DF4-10	12 inch/300mm	600

Application

Application	Description	Function	Industry
Circulating cooling water	Cooling water for Air conditioner and other facilities	To prevent congestion and pollution of heat exchanger, pipes, nozzle, and products, to guarantee the heat exchange efficiency, to save water and energy, to improve the concentration ratio of the cooling water	Iron and steel, electric power, automobile, chemical industry, etc
Recycled water	Recycling of waste water; paper-making water, process water;	To remove the impurities in water, making water to meet the reuse requirements, to protect equipment pipes, nozzle, products, etc	Electric power, papermaking, steel, automobile, etc
General water	Total feed water; washing water; cleaning water; process water; drinking water;	To remove the impurities in water, making water to meet the reuse requirements, to protect equipment pipes, nozzle, products, etc	Electric power, chemical industry, automobile Paper making, etc.
Protection unit of general water treatment	To protect the sand filter, resin, the filter’s core and the filter bag	To remove the impurities in water, to prolong regeneration or service life of the protected equipment, to save the recoil water and replacement cost	All industries
Membrane protection	Pretreatment of micro filtration or UF or RO	To remove mass impurities, soft material and fibrous material in water	Water treatment
Seawater filtration	Pre-filter of seawater desalination; seawater mariculture; seawater circulating	To remove impurities and seawater organisms, and the full-plastic system is anticorrosion.	Water treatment
Waste water treatment	Direct filter of waste water before discharging, biological treatment, and gray water filtering before recycling	To lower BOD and COD particles in water, to reduce the impurities and organic living (bacteria, algae and parasites) in water.	All industries
